4 Channel CCTV kit

Call Richard on 011 476 5718 for inquiries and sales

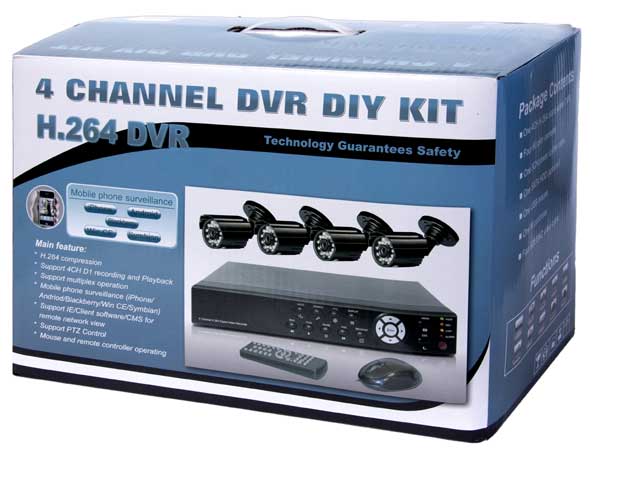

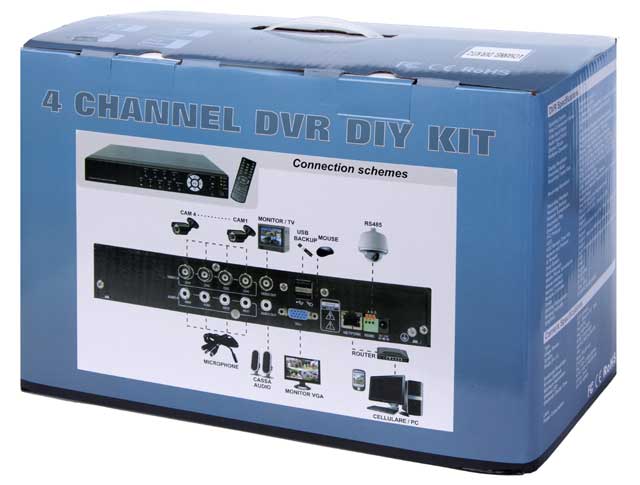

4 channel CCTV kit

Main Features:

  • H.264 compression
  • Supports 4CH D1 recording and Playback.
  • Support multiplex operation.
  • Mobile phone surveillance (iPhone/Android/Win CE/Symbian).
  • Support IE/Client software/CMS for remote network view.
  • Support PTZ Control.
  • Mouse and remote controller operating.



DVR Specifications

Operating System Embedding Linux OS
Video Compression Format Main Profile H.264
Video Input/Output 4Channels BNC/1 Channel BNC, 1 Channel VGA(1280*1024)
Audio Input/Output 4 Channels RCA/1 Channel RCA(Optional)
Display Picture ¼
Multiplex Operation Live/ Display/ Playback/ Recording/ Backup/
Mobile phone surveillance / Network Simultaneously
Display Resolution PAL
Recording Playback ¼ Channels Playback
Recording Backup USB. Moved Hard Disk. Network
Network Transmission 4 Channels Network Transmission with CIF Resolution
Recording Playback Special Player
Email Alarm Send pictures to the designated email
PTZ Protocol PELCO-D, PELCO-P
HDD Support 1 SATA HDD, Capacity to 2TB
HDD Remain Time Hint Support
Network and Protocol RJ-45 10/100M via Ethernet, Support TCI/IP, PPPOE, DHCP, DDNS, UPNP
IE Browser Support
Dual Stream Support (Main and Secondary Interchange)
Multi-Language Support
Mobile Phone Surveillance Support iPhone/ Android/ Blackberry/ Windows CE/Symbian Operation System
Mouse Interface USB1.1
Backup Interface USB2.0
Remote Controller Support
Power DC12V/5A
Working Temperature 0 – 50deg.C
Working Humidity 10%-90%
Size(mm) 274(W)x214.5(D)x45(H)

Camera Specifications

Type CCD Camera
Image Sensor ¼” Sharp or 1/3” Sony
System PAL/NTSC
Pixels (H x V) PAL 500H x 582V
NTSC 510H x 492V
Horizontal Resolution 420TVL/480TVL/600TVL
IR view Distance 15m
Minimum Illumination 0Lux (IR LED On)
Infrared LED 23 Pieces
Electronic Shutter Time PAL 1/50-1/1000,000 sec
NTSC 1/60-1/1000,000 sec
Lens 3.6mm / 6mm
Power Consumption 12V DC 500MA
